PLC and digital panel,
can measure by scale(load cell) or measure by auger,
high accuracy 1%(measure by auger,filling weight 2g-5000g),0.3%(,measure by scale,when filling weight 10g-10kg)

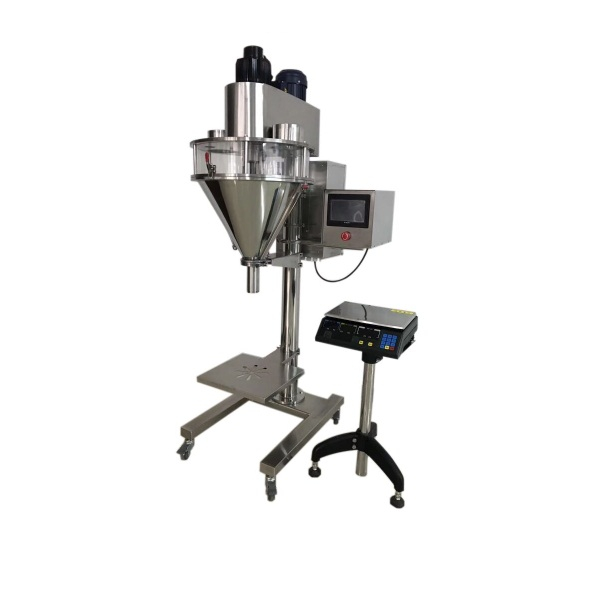

Semi Automatic high accuracy Nutrition Milk Spice Pepper Chilli Sugar Salt Whey Protein Soda talc Supplement Flour Powder Auger Filler
measure by auger
|filling weight range||2g-5000g|
|power supply||3N 380V 50Hz(also can make as 220V 50Hz)|

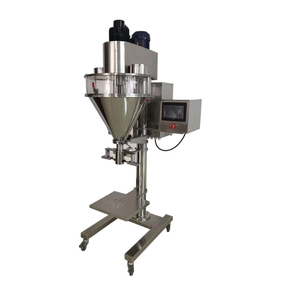

measure by load cell
|filling weight range||10g-10kg|
|filling speed||300-800 bags/hour|
|power supply||3N 380V 50/60Hz(also can make as 220V 50Hz)|
this semi automatic high accuracy powder auger filler can fill different powder or small granule material,like spice,milk protein,toner powder,talcum powder,pesticide,drink powder.
2,transparent hopper,easy open to clean and change auger or maintain.
3,high precision processing to make sure the motor,long axis,hopper,auger parts has a high grade conncentricity.
then,improve operation efficiency,reduce wear .
4,PLC and digital panel,easy operation.
1,hopper can open ,easy clean.
2,agitator is adjustable,suitable for different material.
won't stick on the inwall.
3,PLC and touch screen,high accuracy and easy to change different weight
(also can customize different language)
4,can add dust collector for dusty product.
connect with feeder
