automatic spice pepper supplement nutrition talc chilli milk protein powder can jar bottling auger filling packaging machine

304stainless steel,
PLC and digital panel,
can measure by scale(load cell) or measure by auger,
high accuracy 1%(measure by auger,filling weight 1g-500g),0.3%(,measure by scale,when filling weight 50g-5kg)
Availability:
Quantity:
  • MH-01B
  • MOOHA

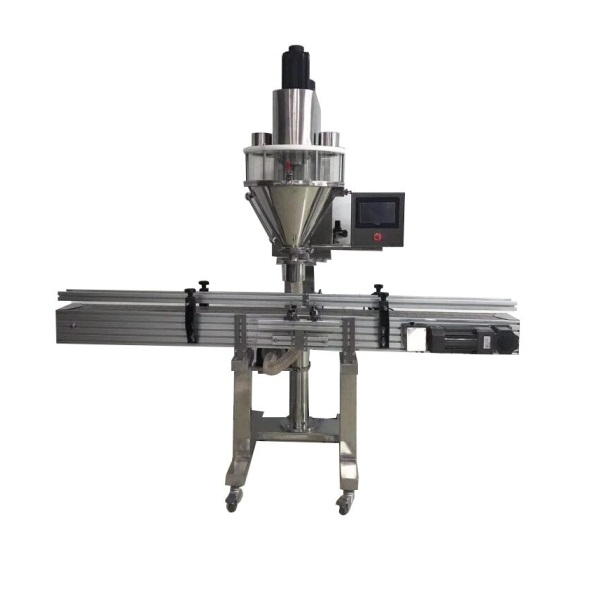

automatic spice pepper supplement nutrition talc chilli milk protein powder can jar bottling auger filling packaging machine

powder-filling-machine-auger-filler-powder dispensor

measure by auger


filling weight range 1-500g
accuracy 1%
filling speed 20-40 bottles/mintue
power supply 3N 380V 50Hz(also can make as 220V 50Hz)
power 1.2kw
air pressure 5-8kg/cm2
compresed air consumption 0.05m3/mintue
machine weight 220kg
machine size 2000*850*1850mm

measure by load cell


filling weight range 50g-5000g
accuracy 0.3%
filling speed 5-25 bottles/mintue
power supply 3N 380V 50/60Hz(also can make as 220V 50Hz)
power 3kw
air pressure 5-8kg/cm2
compresed air consumption 0.05m3/mintue
machine weight 220kg
machine size 2000*850*1850mm



Application

   this automatic powder auger filling machine is suitable to fill different cans bottle jars powder or small

granule material,like spice,milk protein,toner powder,talcum powder,pesticide,drink powder.


Features

1,full 304stainless steel

2,transparent hopper,easy open and clean

3,servo or stepper motor to drive auger,fix bottle at the right position automatically.

4,PLC and digital panel,easy operation.

5,can match capping,label machine to set a complete line.


Details

1,powder filling machine's hopper,easy to open

auger powder filler hopper

2,agitator is adjustable

auger powder filler hopper agitaor

3,bottle/cans location cylinder

auger filler sensor

4,dust collector can be added for some dust product

dust collector

5,conveyor height is adjsuatble to match different packing line.

auger filler adjustable conveyor
