Product Overview
this powder filling machine is a popular semi automatic powder packaging machine ,
it can be used to dispense different powder into bag ,suitable for small or medium factoires in food/chemical/fertilizer industries.
Application:
this series auger filling machine suit for powder and small granular products filling into pre-made containers, bags, cans or bottles, widely used in the talc powder, spice, coffee powder, wheat flour, starch powder, nutrition powder ,agriculture pesticide, dyestuff and so on.
It is the ideal packing equipment for pesticides, veterinary drugs, chemicals, additives, flour, milk, detergent powder, salt, drinks, sugar, monosodium glutamate, condiments(such as spicy fresh), natural flavourings (such as 13 aromatic), enzymes, feed and other powder (powders and ultrafine powder) material.
Features:
1. Adopt a stepping motor/servo motor and electronic weighing technology, high accuracy
2. joint structure,easy to open and clean.
3. easy operation,can adjust the target weight on panel and save parameter.
4. material is full 304stainless steel or customize as 316stainless steel ,safe for food and Pharmaceutical industrial.
5. Photoelectric switch control or foot pedal are optional.
6. Screw feeder can be equipped with automatic feeding control.
7,bag clamp can customized as the dust proof type .
Parameter
Model | MH-15P |
Filling range | 100g~15kg |
Filling speed | 240~600 bags/hour |
Accuracy | ±0.2% |
Powder supply | 220V/380V 50~60Hz 2.7kw |
Material | SS304 (customization accepted) |
Hopper capacity | 50 liters |
Machine size | 740*810*2100mm |
Machine weight | 220kg |
Details pictures

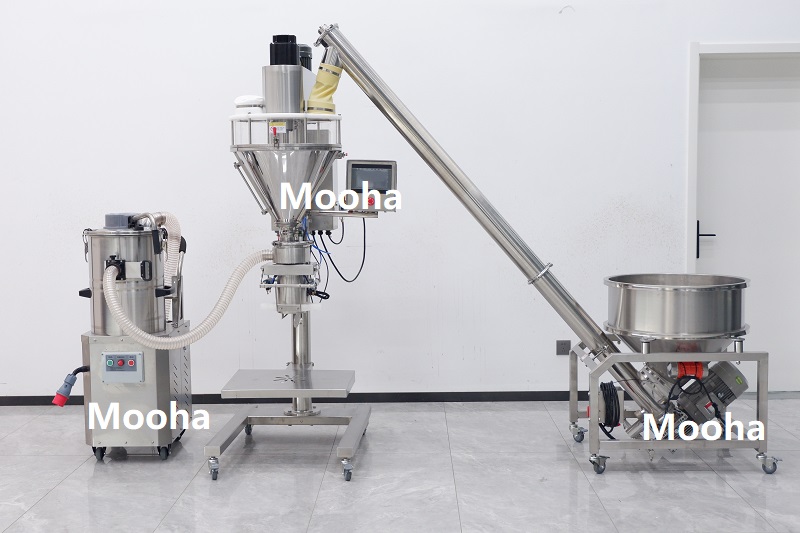

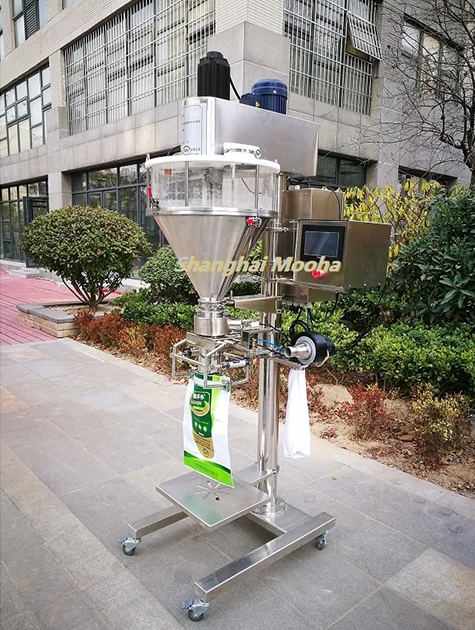

Semi automatic auger filler with bag clamp,suitable for bag filling ,don't need to hold bag by hand.
FAQ
1,Can the machine be customized?
yes,we can customize this kind powder filling machine according to your factory space and exact material feature,like dusty product/bad fluidity and so on.
2,How does the machine clean?
our powder filling machine/screw auger filler takes joint struture,can be opened and cleaned easily .
we have guidence video.
3,What is the production capacity?
this model auger filler is suitbale for 50g-15kg powder bag filling ,we also have bigger model ,like 25kg or 50kg powder bag filling machine.

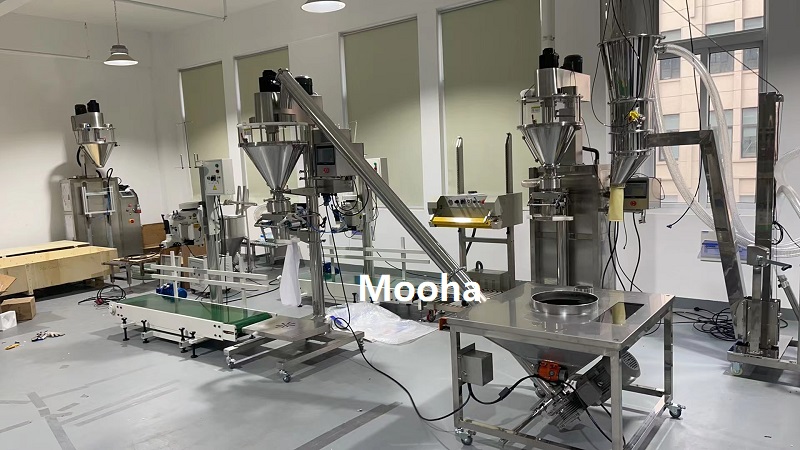

exact case
connect with powder crew elevator
powder filling machine and sewing machine
Working Process
ribbon mixing→ Powder Feeding → Auger Filling → Weight Checking → sealing or sewing→ Final Output
