MH-A50
1,pre-made bag packing machine
Parameter
Packing range:5-25kg
Bag size: W：400-500mm L: 600-800mm
Packing speed:3-5 bag/min
Power supply:220V 、50/60Hz.4kw
Machine size:2800*2650*2650mm
Compressed air:200 Litre/min
Features
1. Suitable for big bag packaging
2. Suitable for pre-made bags, more pre-made bags can be placed at one time
3. Suction cup with vacuum detection device
4. The large cylinder grabs the prefabricated bag without loosening it until the sealing is completed to ensure that the sealing is smooth.
5. Made of stainless steel, beautiful and elegant design
2,weigher(also can change as auger filler when pack powder)
Power supp;u:3phase 380V 50Hz 1.5kw
Weighing range:<25kg
Accuracy:±0.2%
Packing speed:3-4bags/minute
Component list
Feeding way:linear+vibration
Panel:Weinview 8072,Taiwan
Load cell:ZEMIC or METTLER TOLEDO high accuracy weighing sensor
Servo motor:Fuji servo motor,Japan
Relay:Schneider
AC contactor :Schneider
Cylinder:Airtac
Features
*Independent weighing hopper: not easily affected by the outside world, separated from the bag, and works quickly.
*The feeder can adjust itself according to the specific gravity of the material during operation to achieve higher accuracy and faster speed.
*Independent single weight sensor: more stable work and higher sensitivity.
*Color PLC touch screen operation interface, which can be set according to the action time, making the operation more intuitive and convenient.
* Equipped with a calibration program and a code that can be easily calibrated at any time, it is especially useful for weight drift if it is not used for a long time.
*The whole machine is beautiful and elegant, making it easy to remove residual materials. The weighing hopper is suspended and can be directly disassembled for easy cleaning.

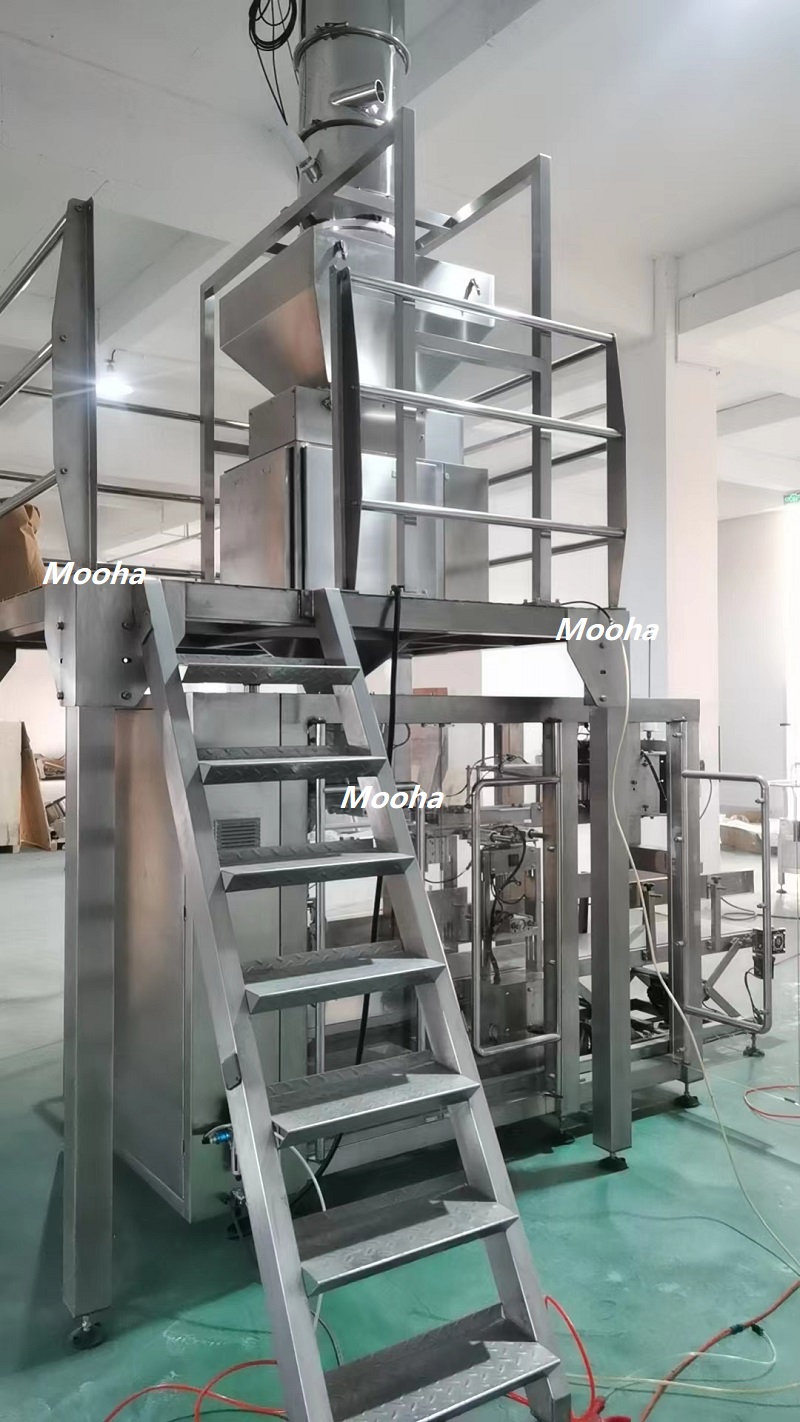

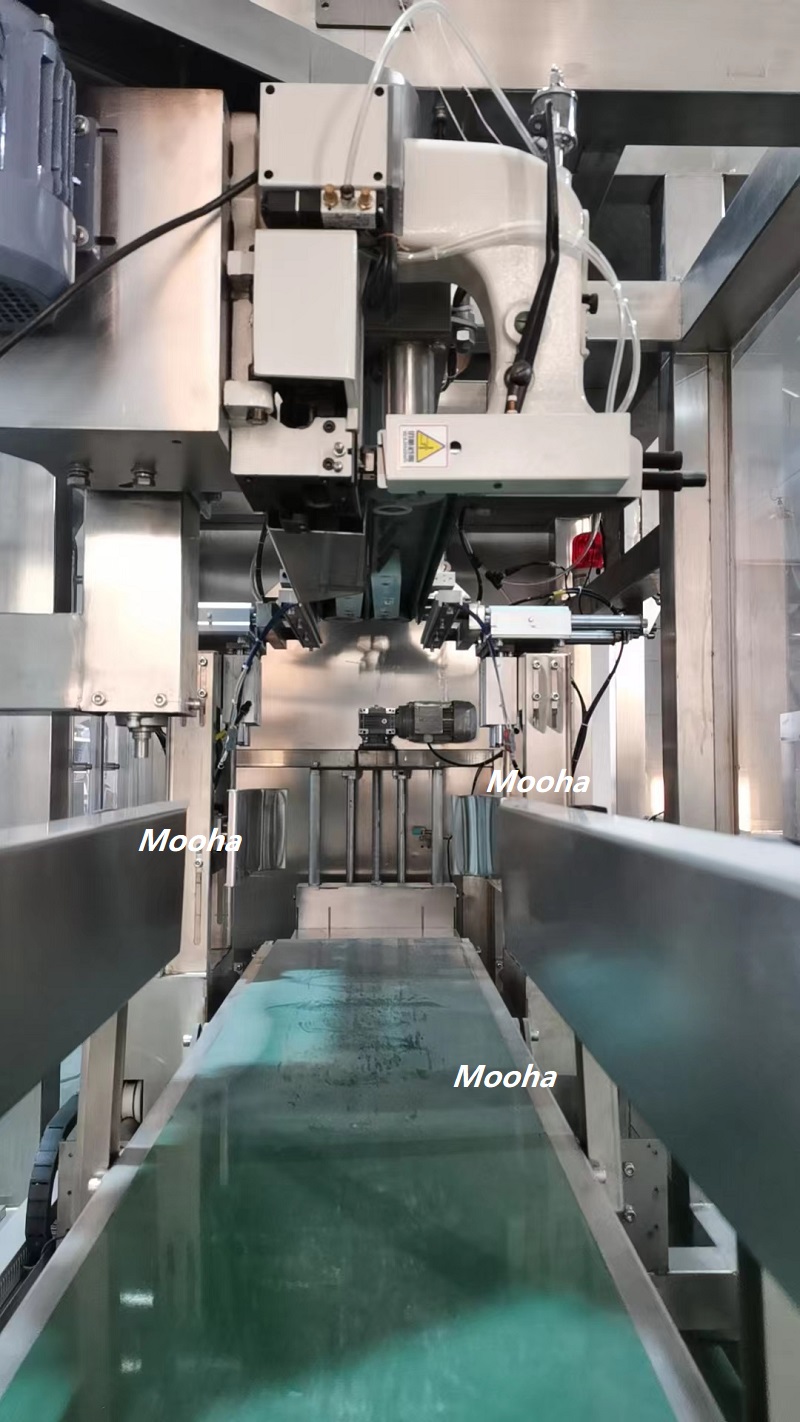

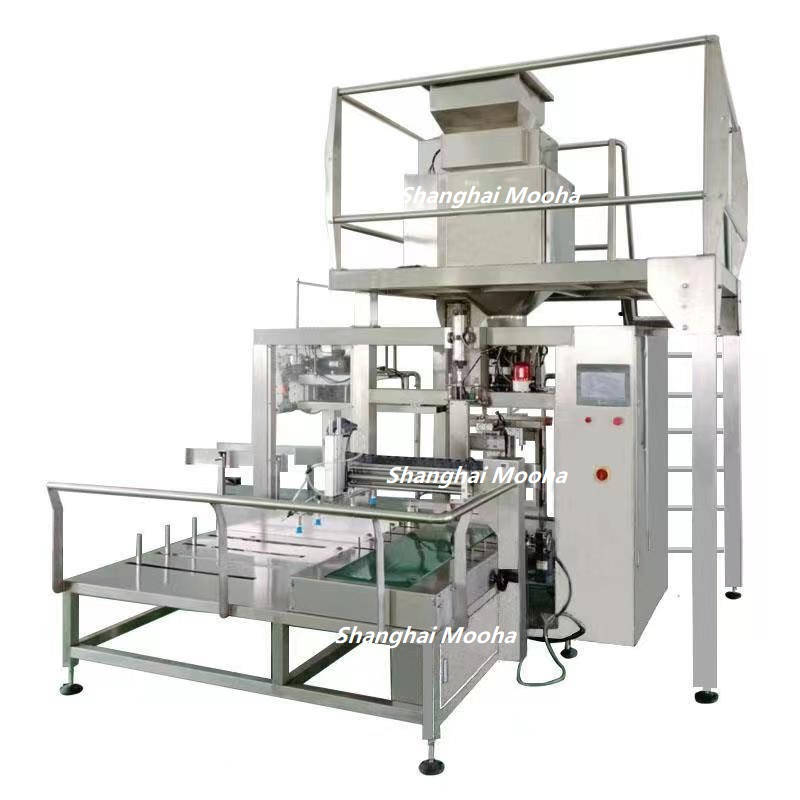

Details of this 25kg 50kg pre-made bag packaging machine,
