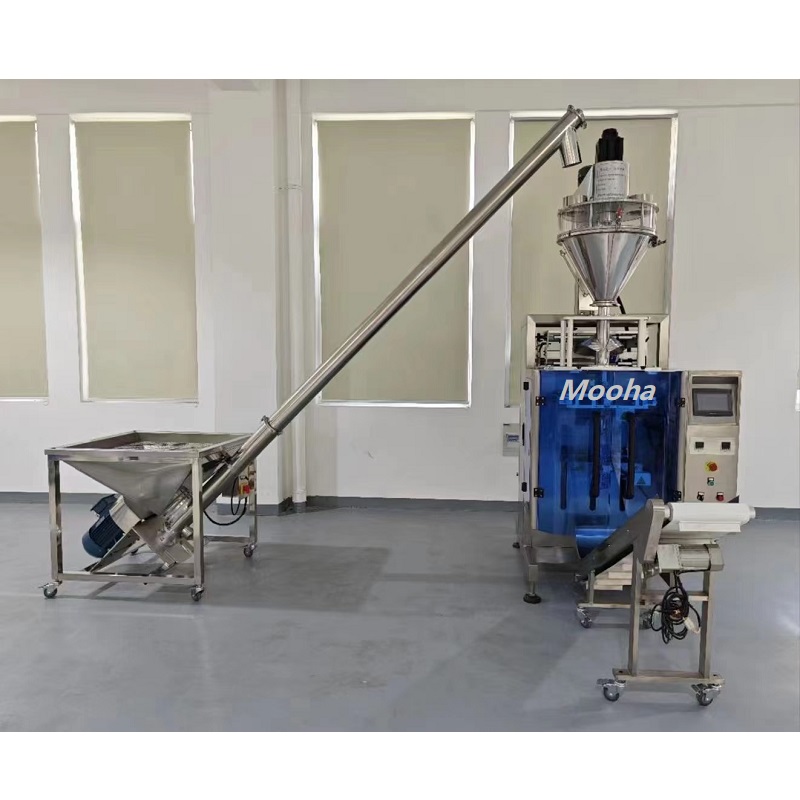

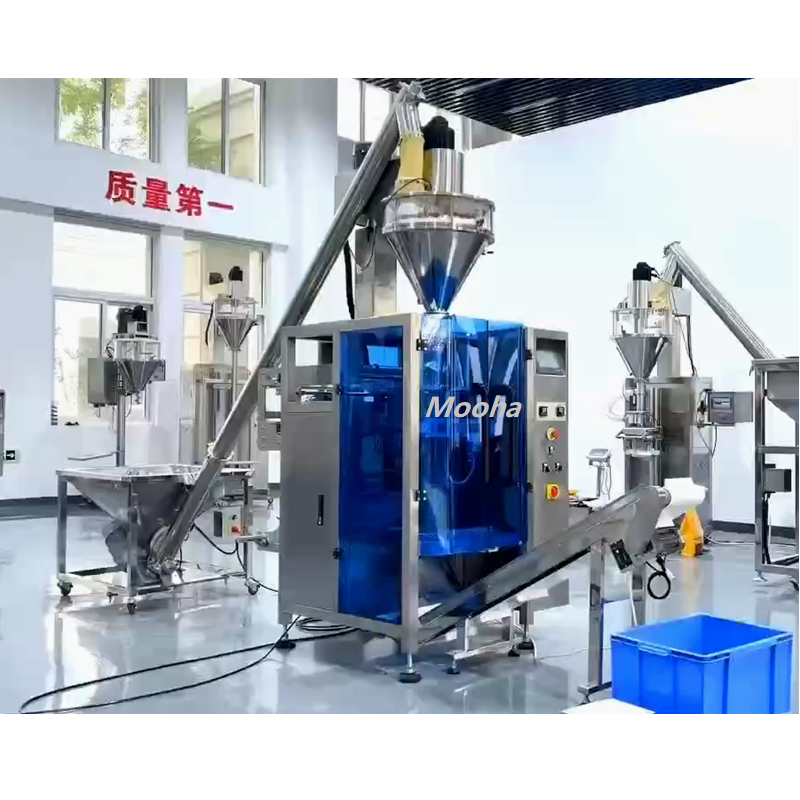

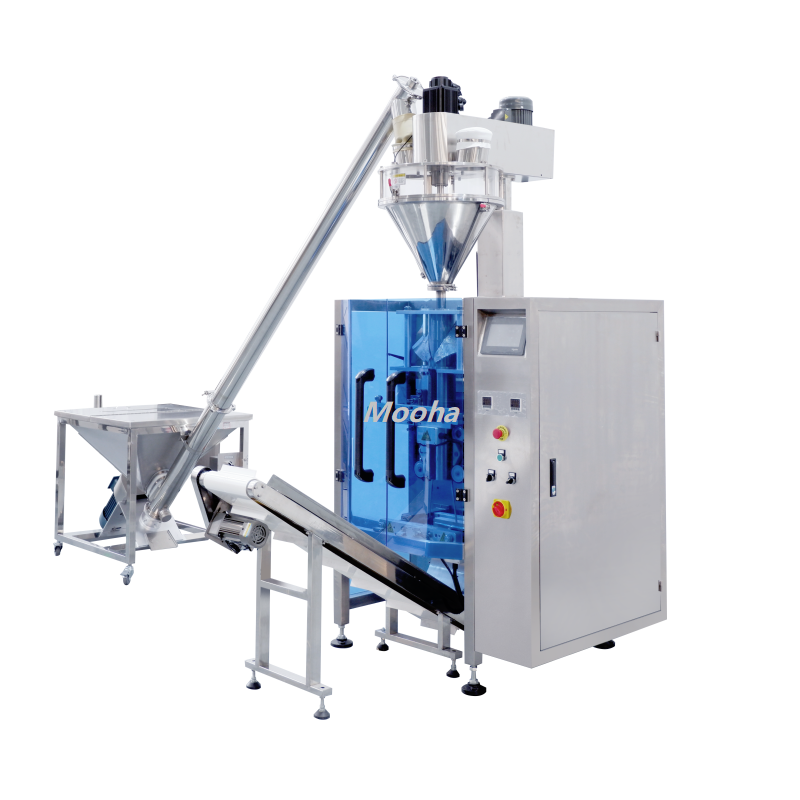

MH-420P
mooha
Application:
It is suitable for measuring and packing ultrafine materials, integrating measuring, bag making, packaging, sealing, printing and counting. Suitable for all kinds of powder automatic weight packaging requirements. Such as milk powder, condiments, cocoa powder, pesticides, veterinary drugs, washing powder, flour and so on.
Features:
1.New design, beautiful appearance, more reasonable structure, more advanced technology.
2.Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.
3.Imported servo film transport system, imported color code sensor, accurate positioning, excellent machine performance, beautiful packaging.
4.A variety of automatic alarm protection functions to minimize loss.
5.Diversified bag types, can provide customers with pillow shaped bags, insert corner bags, hanging bags, bags and so on.
6.Powder screw metering head to ensure stable and accurate packaging weight.
7.All stainless steel structure.
Parameter
Model | MH-420P |
Film width | Max.420mm |
Film width Range | 140-420mm |
Bag Width | 65-200mm |
Bag Length | 80-300mm（if make special order can do 320MM ) |
Film roll Diameter | Max.320mm |
Packing rate | 5-60bag/min |
Measurment range | 150-1500ml |
Film thickness | 0.07-0.15mm |
Power | 220V,50HZ, Single Phase |
Machine size | (L)1217*(W)1015*(H)1343 |
Machine Weight | 400kg |
Remark | Pneumatic Type |
Sample
