Application:

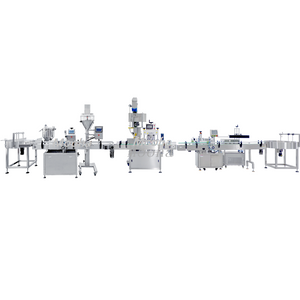

full automatic powder filling & capping machine is a mature product, filling all kinds of powder, such as collagen powder, pepper powder and so on. Using PLC touch screen to control servo motor to drive screw filling, the filling precision is high, the design is reasonable, easy to operate and maintain, fully in line with the new GMP requirements.
this machine can match bottle feeder(for glass bottle) or high speed bottle unscrambler(for plastic bottle) for production line use, also, we can supply right labeling machine, for a full automatic line set.
Main Characteristic:
1, PLC touch screen control, easy to operate and maintain.
2, Servo motor control screw, high filling precision.
3, Frequency control, production speed can be adjusted, automatic counting.
4, No bottle no filling.
5, Using SUS304 & 316L, meet the GMP.
Parameter
| Model | MHFGX500 |
| Filling range | 0.1~500g (different filling range needs to change screw) |
| Filling speed | 30~50 bottles/min ; 60~80 bottles/min |
| Air consumption | 0.8~2m²/h, 0.3~0.8 Mpa |
| Accuracy | ±0.3% (according to different material) |
| Power | AC220V 50Hz 2KW |
| Machine weight | 500kg |
| Machine size | 2000*1250*1800mm |
Application:
full automatic powder filling & capping machine is a mature product, filling all kinds of powder, such as collagen powder, pepper powder and so on. Using PLC touch screen to control servo motor to drive screw filling, the filling precision is high, the design is reasonable, easy to operate and maintain, fully in line with the new GMP requirements.
this machine can match bottle feeder(for glass bottle) or high speed bottle unscrambler(for plastic bottle) for production line use, also, we can supply right labeling machine, for a full automatic line set.
Main Characteristic:
1, PLC touch screen control, easy to operate and maintain.
2, Servo motor control screw, high filling precision.
3, Frequency control, production speed can be adjusted, automatic counting.
4, No bottle no filling.
5, Using SUS304 & 316L, meet the GMP.
Parameter
| Model | MHFGX500 |
| Filling range | 0.1~500g (different filling range needs to change screw) |
| Filling speed | 30~50 bottles/min ; 60~80 bottles/min |
| Air consumption | 0.8~2m²/h, 0.3~0.8 Mpa |
| Accuracy | ±0.3% (according to different material) |
| Power | AC220V 50Hz 2KW |
| Machine weight | 500kg |
| Machine size | 2000*1250*1800mm |
