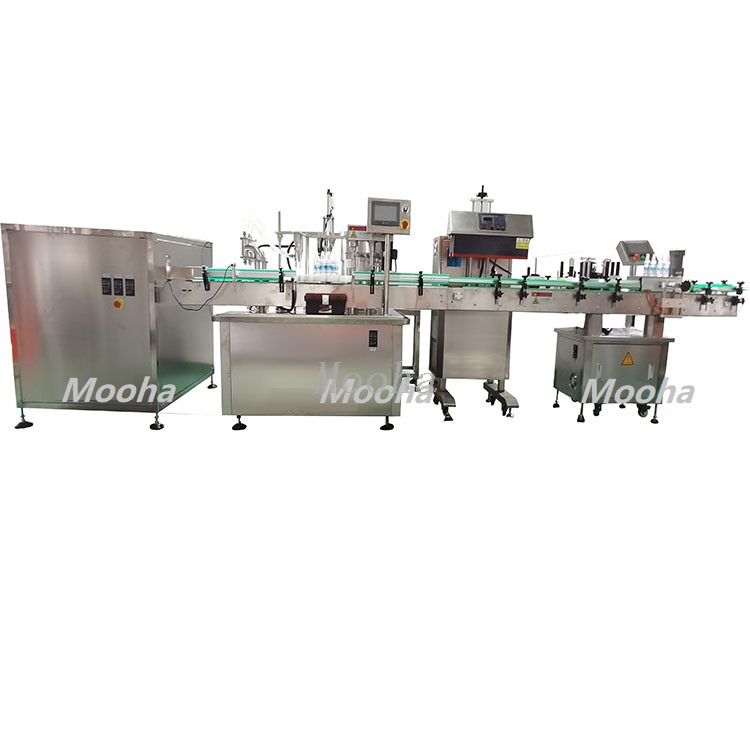

Spray Liquid Vial Filling Capping Machine Small Bottle Perfume Filling Capping Labeling Line

Main Introduction：

Spray filling&capping machine，just for the bottle with pump head，take index way filling ,put pump head ,capping ,high degree of automation,using peristaltic pump filling, filling precision is high,perfect equipment for spray filling.

this machine can match right bottle unscrambler and labeling machine for a full production line.

Characteristic：

1. Auto feeder the pump head,auto put pump head on the bottle;

2. PLC control,peristaltic pump filling;

3. The imported CAM cutter provides accurate and equal position;

4. Reasonable design, stable operation and easy maintenance;

5. Use SS304&316L ,meet the GMP;

also, for above requirements, our machine can be customized according to user's needs.

Main technical parameters:

1. Applicable bottle：5-500ML

2. Capacity:30-50bottles/min

3. Air consumption：0.8-2m³/h   0.3-0.8Mpa

4. Voltage:220V 50Hz or according to customer

5. Power：2KW

6. Weight：520Kg

7. Dimension:2000*1000*1600mm
