MHFGX500-3
mooha
Application:

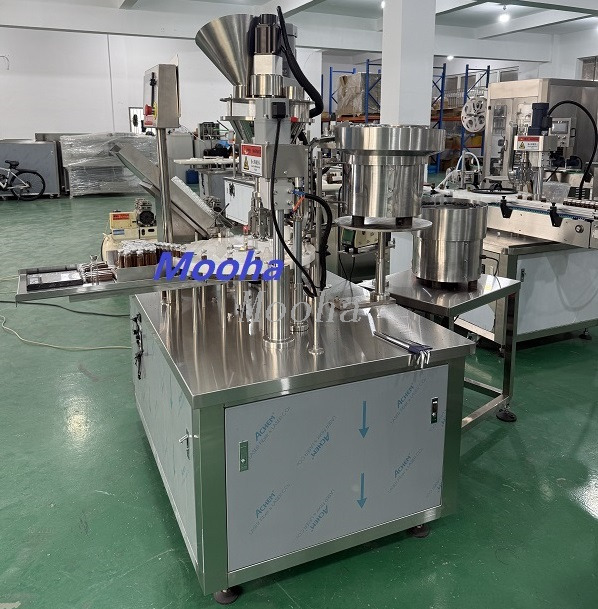

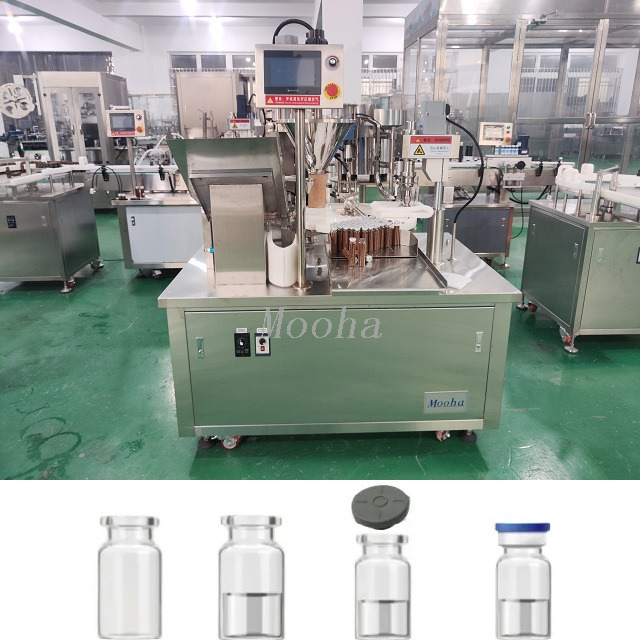

MHFGX-500-3 powder vial filling & capping machine is a mature product, filling all kinds of powder, such as collagen powder, pepper powder and so on. Using PLC touch screen to control servo motor to drive screw filling, the filling precision is high, the design is reasonable, easy to operate and maintain, fully in line with the new GMP requirements.
Main Characteristic:
1, PLC touch screen control, easy to operate and maintain.
2, Servo motor control screw, high filling precision.
3, Frequency control, production speed can be adjusted, automatic counting.
4, No bottle no filling.
5, Using SUS304 & 316L, meet the GMP.
Parameter
| Model | MHFGX500 |
| Filling range | 0.1~500g (different filling range needs to change screw) |
| Filling speed | 30~50 bottles/min ; 60~80 bottles/min |
| Air consumption | 0.8~2m²/h, 0.3~0.8 Mpa |
| Accuracy | ±0.3% (according to different material) |
| Power | AC220V 50Hz 2KW |
| Machine weight | 500kg |
| Machine size | 2000*1250*1800mm |

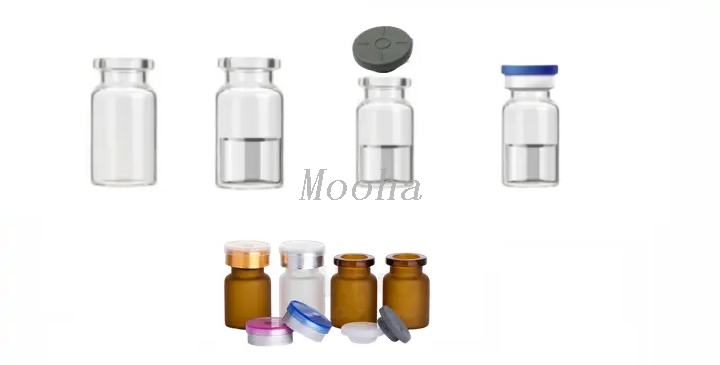

powder vial filling capping machine working process
Powder Feeding → Auger Filling → capping → Final Output
FAQ
1,filling range for this vial filling capping machine?
0.1g is its mininum filling weight ,1g,5g.....5kg ,we have other powder filling machine.
2,whether can customize?
yes,we can customize the powder vial filling machine according to your material,vials/caps ,space size and other factors.
3,how about speed?
we have single head powder vial filling machine ,also have two heads model.
