MHFGX500
mooha
Application:

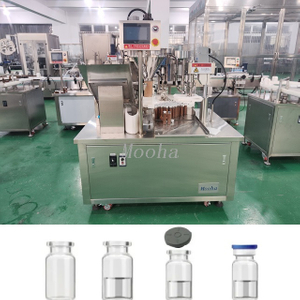

MHFGX-500 powder filling & capping machine is a mature product, filling all kinds of powder, such as collagen powder, pepper powder and so on. Using PLC touch screen to control servo motor to drive screw filling, the filling precision is high, the design is reasonable, easy to operate and maintain, fully in line with the new GMP requirements.
Main Characteristic:
1, PLC touch screen control, easy to operate and maintain.
2, Servo motor control screw, high filling precision.
3, Frequency control, production speed can be adjusted, automatic counting.
4, No bottle no filling.
5, Using SUS304 & 316L, meet the GMP.
Parameter
| Model | MHFGX500 |
| Filling range | 0.1~500g (different filling range needs to change screw) |
| Filling speed | 30~50 bottles/min ; 60~80 bottles/min |
| Air consumption | 0.8~2m²/h, 0.3~0.8 Mpa |
| Accuracy | ±0.3% (according to different material) |
| Power | AC220V 50Hz 2KW |
| Machine weight | 500kg |
| Machine size | 2000*1250*1800mm |
Vial bottle powder filling capping line set (customization accepted)
