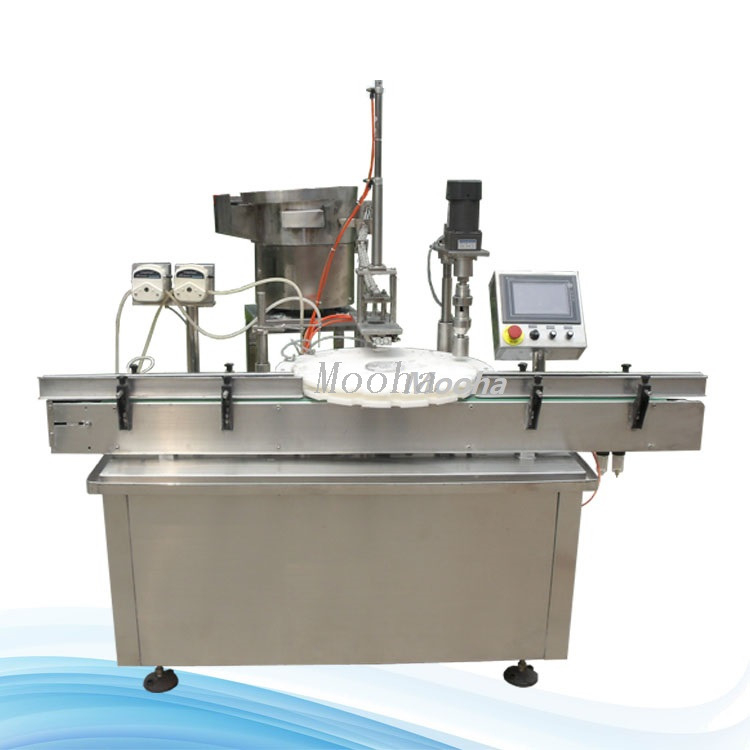

10~100ml Spray Liquid Filling Capping Machine Air Freshener Vial Filling And Capping Machine Monoblock Vial Filling Machine

Main Introduction：

Spray filling & capping machine，just for the bottle with pump head，take index way filling ,put pump head ,capping , high degree of automation,using peristaltic pump filling, filling precision is high,perfect equipment for spray filling.

Characteristic：

1. Auto feeder the pump head,auto put pump head on the bottle;

2. PLC control,peristaltic pump filling;

3. The imported CAM cutter provides accurate and equal position;

4. Reasonable design, stable operation and easy maintenance;

5. Use SS304&316L ,meet the GMP.

Main technical parameters:

1. Applicable bottle：5-500ML

2. Capacity:30-50bottles/min

3. Air consumption：0.8-2m³/h   0.3-0.8Mpa

4. Voltage:220V 50Hz or according to customer

5. Power：2KW

6. Weight：520Kg

7. Dimension:2000*1000*1600mm
