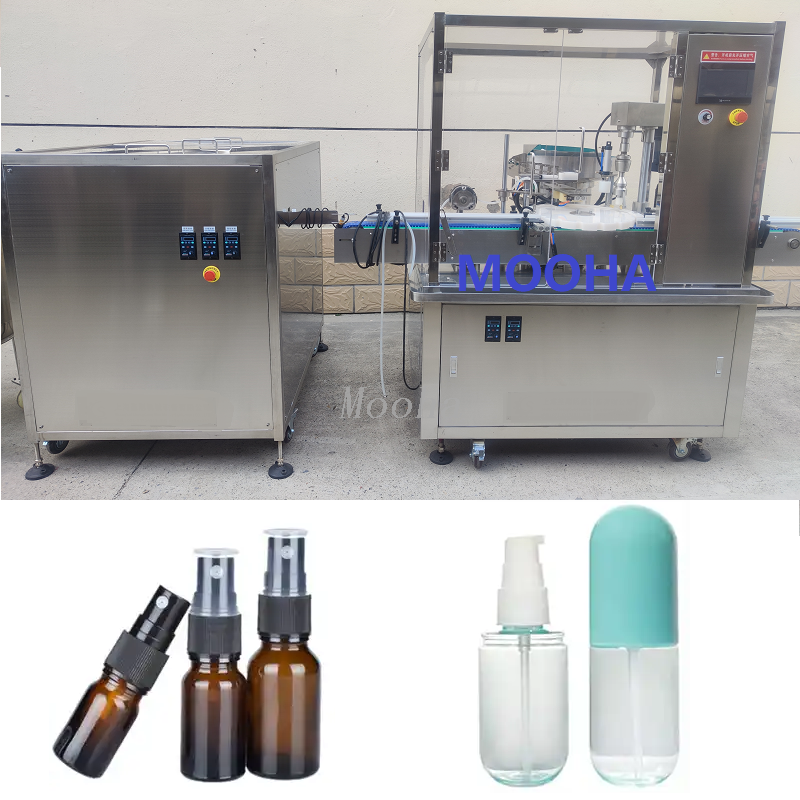

Spray Perfume Sample Vial Filling Capping Machine Air Freshener Liquid Filling And Capping Machine Monoblock Liquid Vial Machine

Main Introduction：

Spray filling&capping machine，just for the bottle with pump head，take index way filling ,put pump head ,capping ,high degree of automation,using peristaltic pump filling, filling precision is high,perfect equipment for spray filling.

Characteristic：

1. Auto feeder the pump head,auto put pump head on the bottle;

2. PLC control,peristaltic pump filling;

3. The imported CAM cutter provides accurate and equal position;

4. Reasonable design, stable operation and easy maintenance;

5. Use SS304&316L ,meet the GMP;

Main technical parameters:

1. Applicable bottle：5-500ML.

2. Capacity:30-50bottles/min.

3. Air consumption：0.8-2m³/h   0.3-0.8Mpa.

4. Voltage:220V 50Hz or according to customer.

5. Power：2KW.

6. Weight：520Kg.

7. Dimension:2000*1000*1600mm.
