Application:

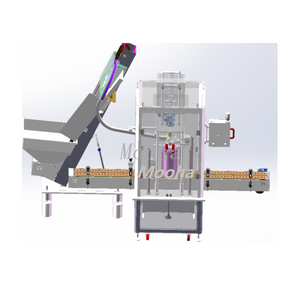

Rotary cap machine is suitable for pharmaceutical, daily chemical and other industries.
The structure of the machine is reasonable, using a single head vibration disc cover, grab, cover, four wheel rolling cover and other processes.
The high precision CAM grader can locate the bisecting astrolabe without gap and accurately.
Touch screen, PLC intelligent control, simple operation, convenient man-machine dialogue; With no bottle cap, no bottle screw cap function.
The machine adopts two sources of gas and electricity control, the working table is protected by stainless steel material, and the whole machine meets the GMP requirements. The machine adopts mechanical transmission, accurate and stable transmission, with low loss, stable work, stable output and other advantages, especially suitable for mass production.
Parameter
| Productivity | 10~30 bottles/min |
| Pass rate | ≥98% |
| Power Supply | 220V，50Hz , 1.5Kw |
| Machine size | 2500×2000×2000mm |
| Machine weight | 450kg |
| Air supply | 0.4kg/cm²，10m³/h |
Capping Machine in Full Production Line
(for different line set, the capping machine could be single head, double heads or customized according to user's needs)
Application:
Rotary cap machine is suitable for pharmaceutical, daily chemical and other industries.
The structure of the machine is reasonable, using a single head vibration disc cover, grab, cover, four wheel rolling cover and other processes.
The high precision CAM grader can locate the bisecting astrolabe without gap and accurately.
Touch screen, PLC intelligent control, simple operation, convenient man-machine dialogue; With no bottle cap, no bottle screw cap function.
The machine adopts two sources of gas and electricity control, the working table is protected by stainless steel material, and the whole machine meets the GMP requirements. The machine adopts mechanical transmission, accurate and stable transmission, with low loss, stable work, stable output and other advantages, especially suitable for mass production.
Parameter
| Productivity | 10~30 bottles/min |
| Pass rate | ≥98% |
| Power Supply | 220V，50Hz , 1.5Kw |
| Machine size | 2500×2000×2000mm |
| Machine weight | 450kg |
| Air supply | 0.4kg/cm²，10m³/h |
Capping Machine in Full Production Line
(for different line set, the capping machine could be single head, double heads or customized according to user's needs)
