Application:

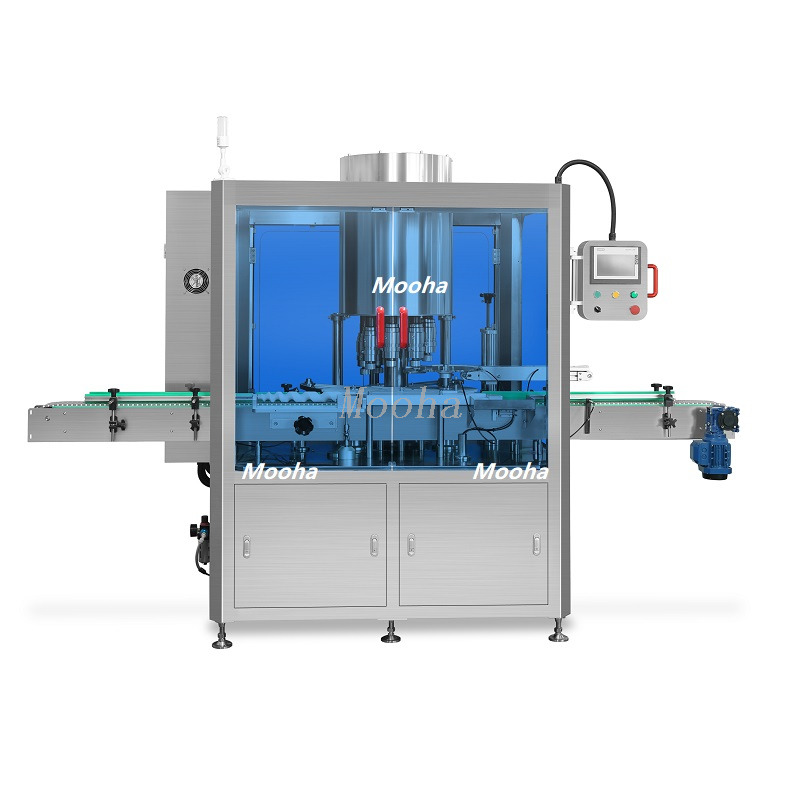

High Speed 100bpm 8 Working Station 8 capping heads High Speed rotary capping machine is suitable for pharmaceutical, daily chemical, food and other industries. The device drop the bottle into the screw conveyor by the conveyor belt, and the screw conveyor transfers the bottle to the capping machine by the No. 1 star wheel. The bottle plate will stuck the bottle (or the stop-rotating belt holds the bottle ) tightly and cap it,then,transfer the bottle to conveyor by No.2 start wheel. This equipment is advanced in technology, with bottle blocking, bottle lack, cover, overload protection alarm device. It has reliable performance and scientific process flow, food hygiene conditions which meet the national standards and easy to operate.
Features:
1. easy operation,touch screen and PLC to control machine.
2. high speed ,8 working station.
3. stable performance and scientific process flow
4.advanced in technology,it has bottle blocking, bottle lack, cover, overload protection alarm device
Parameter:
| Bottle range | diameter 40-80mm，height 80-250mm(can customize) |
| Cap diameter range | 20-80mm |
| Capping head | 8 heads |
| Productivity | 5000-8000bottles/h(different cap different speed,customize) |
| Accuracy | ≥99% |
| Power supply | 220V，50Hz 3kw |
| Machine size | 4000×2000×2200mm |
| Machine weight | 2000kg |
Detail:
Application:
High Speed 100bpm 8 Working Station 8 capping heads High Speed rotary capping machine is suitable for pharmaceutical, daily chemical, food and other industries. The device drop the bottle into the screw conveyor by the conveyor belt, and the screw conveyor transfers the bottle to the capping machine by the No. 1 star wheel. The bottle plate will stuck the bottle (or the stop-rotating belt holds the bottle ) tightly and cap it,then,transfer the bottle to conveyor by No.2 start wheel. This equipment is advanced in technology, with bottle blocking, bottle lack, cover, overload protection alarm device. It has reliable performance and scientific process flow, food hygiene conditions which meet the national standards and easy to operate.
Features:
1. easy operation,touch screen and PLC to control machine.
2. high speed ,8 working station.
3. stable performance and scientific process flow
4.advanced in technology,it has bottle blocking, bottle lack, cover, overload protection alarm device
Parameter:
| Bottle range | diameter 40-80mm，height 80-250mm(can customize) |
| Cap diameter range | 20-80mm |
| Capping head | 8 heads |
| Productivity | 5000-8000bottles/h(different cap different speed,customize) |
| Accuracy | ≥99% |
| Power supply | 220V，50Hz 3kw |
| Machine size | 4000×2000×2200mm |
| Machine weight | 2000kg |
Detail:
